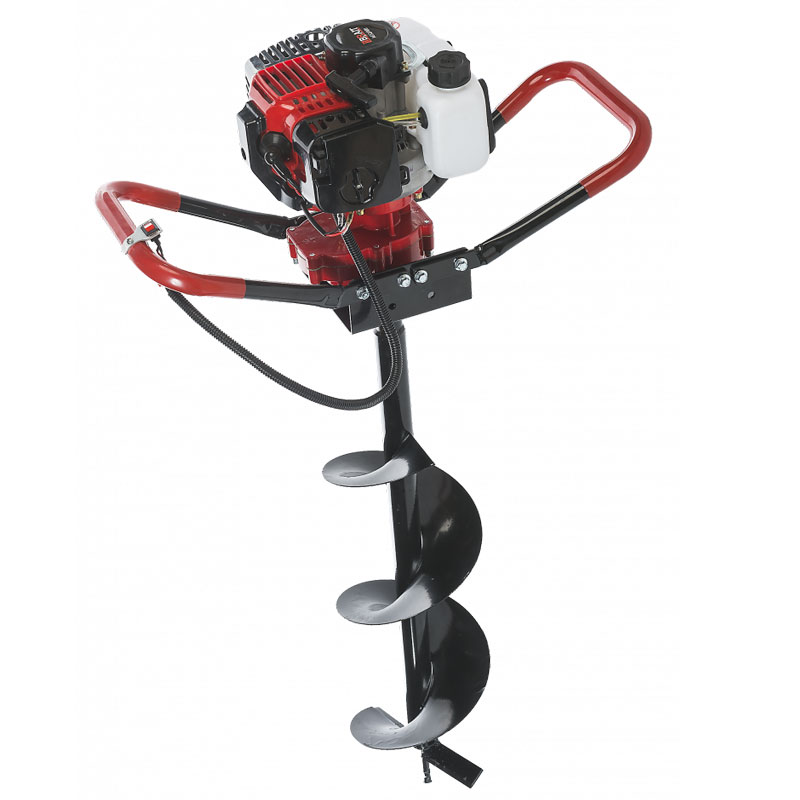

Earth Auger
EA520F
Earth Auger
Engine type: Air-cooled, 2-stroke, single cylinder
Displacement: 52cc
Rated output power: 1.45kw/8000r/min
Transmissible system: Worm gear & shaft design
Two-cycle oil/Gasoline mixing ratio: 1:40
Fuel tank capacity: 1250ml
Loading speed: 2800-3200r/min
Drill diameter: 30~200mm
N.W/G.W: 5.0/5.5kg
EA880A
Earth Auger
Engine type: Air-cooled, 2-stroke, single cylinder
Displacement: 88cc
Rated output power: 3.5kw/8000r/min
Transmissible system: Worm gear & shaft design
Two-cycle oil/Gasoline mixing ratio: 1:40
Fuel tank capacity: 1200ml
Loading speed: 2800-3200r/min
Drill diameter: 100~300mm
N.W/G.W: 8.5/9.8kg
EA580
Earth Auger
Engine type: Air-cooled, 2-stroke, single cylinder
Displacement: 58cc
Rated output power: 2.6kw/8000r/min
Transmissible system: Worm gear & shaft design
Two-cycle oil/Gasoline mixing ratio: 1:40
Fuel tank capacity: 1250ml
Loading speed: 2800-3200r/min
Drill diameter: 100~250mm
N.W/G.W: 6.3/7.9kg
